Composite Geonet Drainage System

Copyright 2013© COALESCENTRUM INC. (CLSC)

Quality  Assurance

Our factory has been qualified by the stringent standards of ISO 9001 quality management system and ISO 14001 environmental management system.

ISO9001 Certified

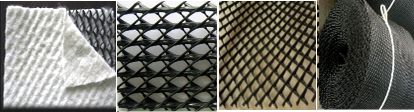

Our Composite Geonet Drainage System consists of a layer of geonet bonded or wrapped between two layers of geotextile.

The core geonet is designed with a three dimensional structure, which provides excellent compressive creep resistance and a great flow capacity. Two porous and tough geotextiles serve separation and



Characteristics

à Excellent  drainage function

à High tensile and shear strength

à Carrying  more than 2,000 Kpa compression load

à Providing continuous free water flow over long duration

à Excellent chemical and biological resistance; enhanced UV stability

à Long service life

à Easy to install



Applications

à Drainage system for highways, railways, tunnels, underground structures, retaining walls, etc.

à Roadbed reinforcement, slope protection, sand dune fixation, gabion groins

à Gardens, sports fields, etc.

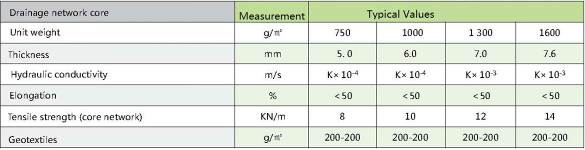

Technical data









Product Models

The geonets are made of quality high density polyethylene resins.



Various sizes and specifications.

**We can produce the products in accordance with custom specifications, or specific design criteria.

ISO14001 Certified

filtration functions, and also protect the geonet. The unique multi-layered design makes the product an efficient drainage and reinforcement system.
