Composite Geomembrane

Geotextile-membrane

Our composite geomembrane is a combination of geotextile and geomembrane. The product provides the advantages of both geomembranes and geotextiles. And, the geotextile layer increases essential tensile strength and enhances tear and puncture resistance.

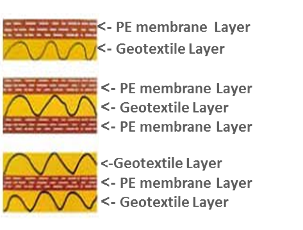

Coalescentrum Inc.  supplies composite geomembranes, including:



· CG11 series:

      one layer of membrane and one layer of geotextile

      Geotextile: 100-1000g/m²; Geomembrane: 0.1-1.5mm

· CG21 series:

      two layers of membrane and one layer of geotextile

     Geotextile: 80-600g/m²;Geomembrane: 0.2-1.5mm

· CG12 series

      one layer of membrane and two layers of geotextile

      Geotextile: 100-1000g/m²;Geomembrane: 0.1-0.8mm

· CG-multi

      Multiple layers.

      Geotextile: 100-1000g/m²; Geomembrane: 0.1-0.8mm



Functions



A liquid or gas barrier. Containment, anti-seepage, separation, etc..



Applications



à Landfilling (liners and covers)

à Waste water treatment

à Basement and rooftop waterproofing

à Roads, highways, railways construction

à Tunnels, dams, canals, ponds, reservoir liners, floating covers and almost all hydraulic applications

à Aquaculture, landscape and agriculture

à etc.



Specifications



width 1.0-8.0 meters; length 50.0 – 100.0 meters

*We can manufacture the products in accordance with custom specifications or specific design criteria.
